System Architecture: Small Scale (1-100A)

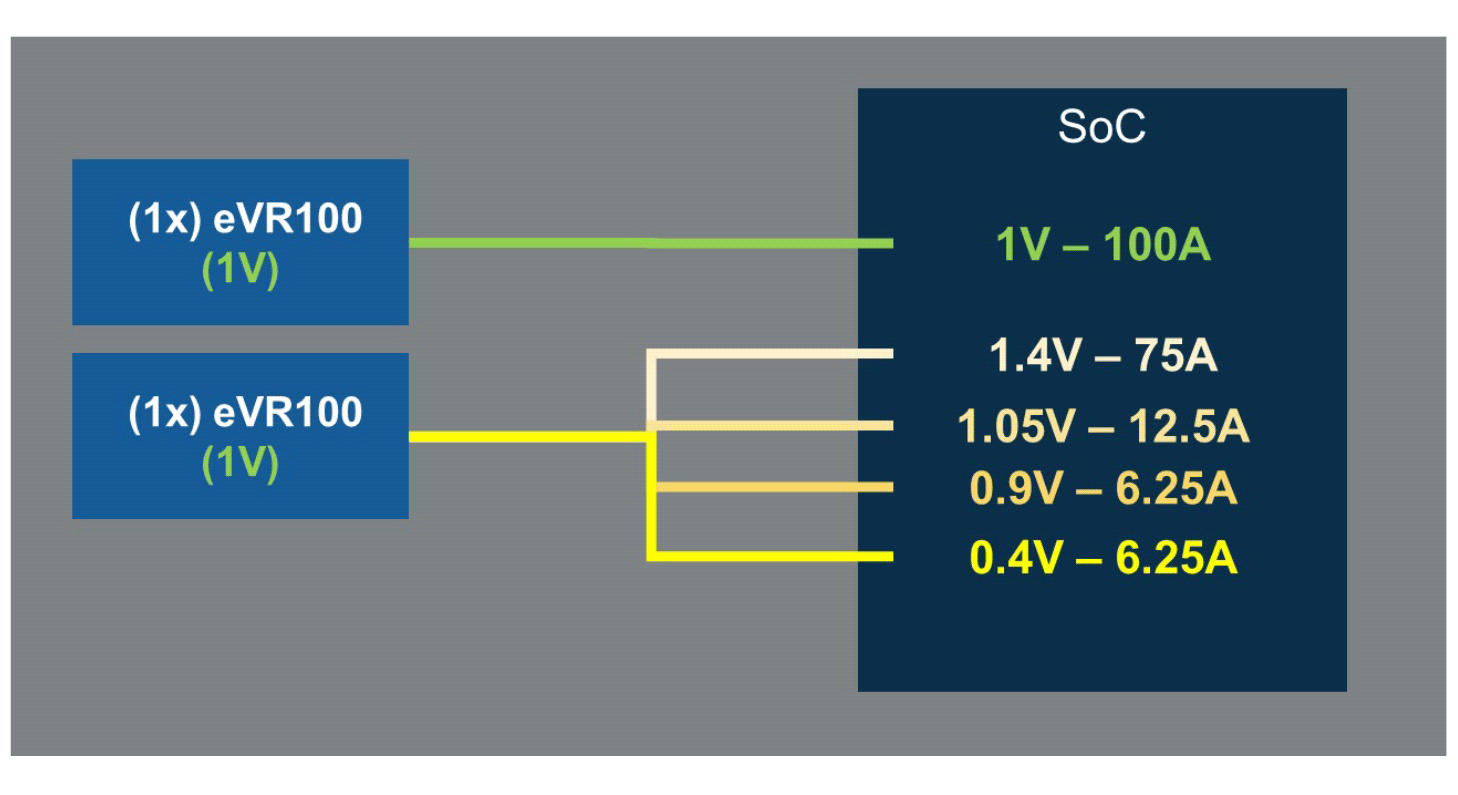

This single eVR100 (1x domain configuration) solution is powering 100A for an SoC main core along with another eVR100 (4x domain configuration) powering various voltages and loads for other SoC rail requirements. There are 8 total domain configurations available depending on the requirements of the system.

Endura System Architecture: Small Scale (1-100A)

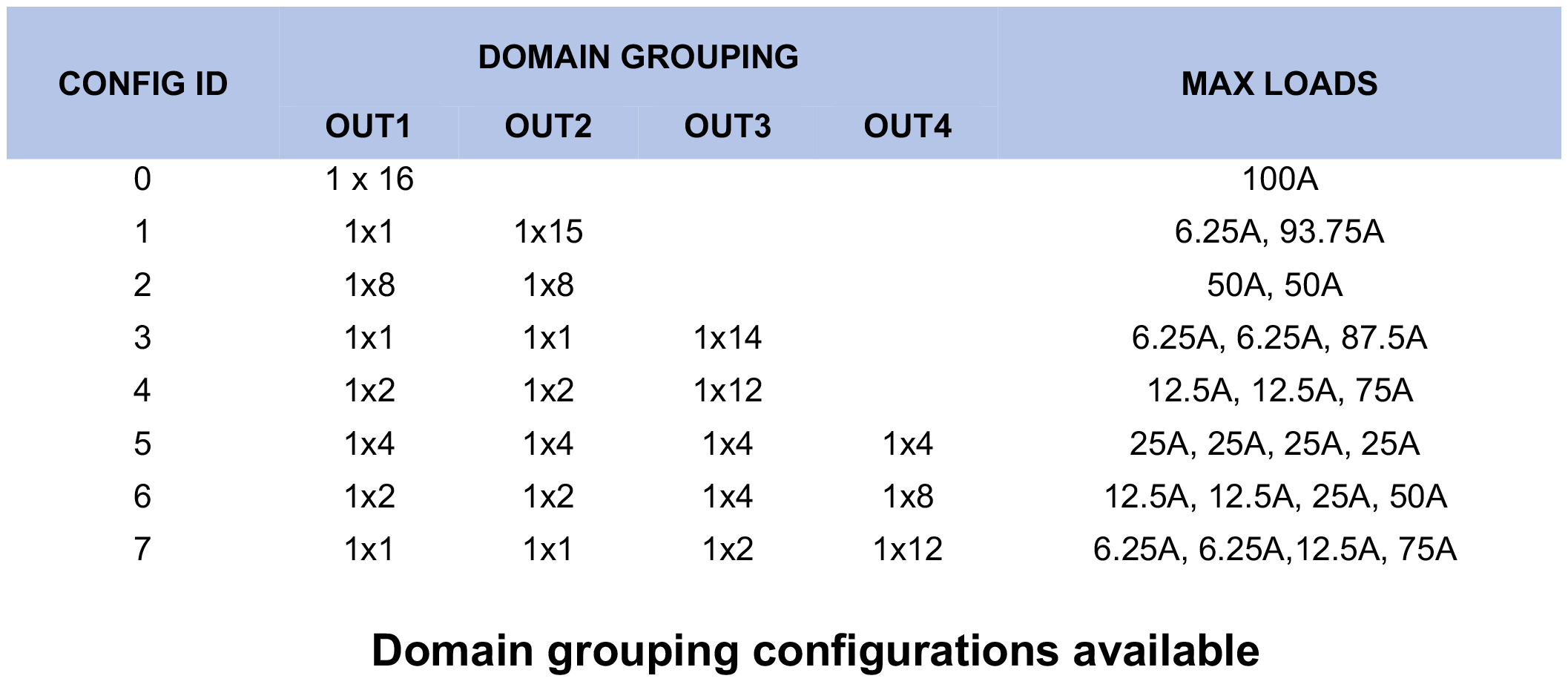

Endura System Architecture: Small Scale Specs

eVR100 – 1000A Chiplet Solution

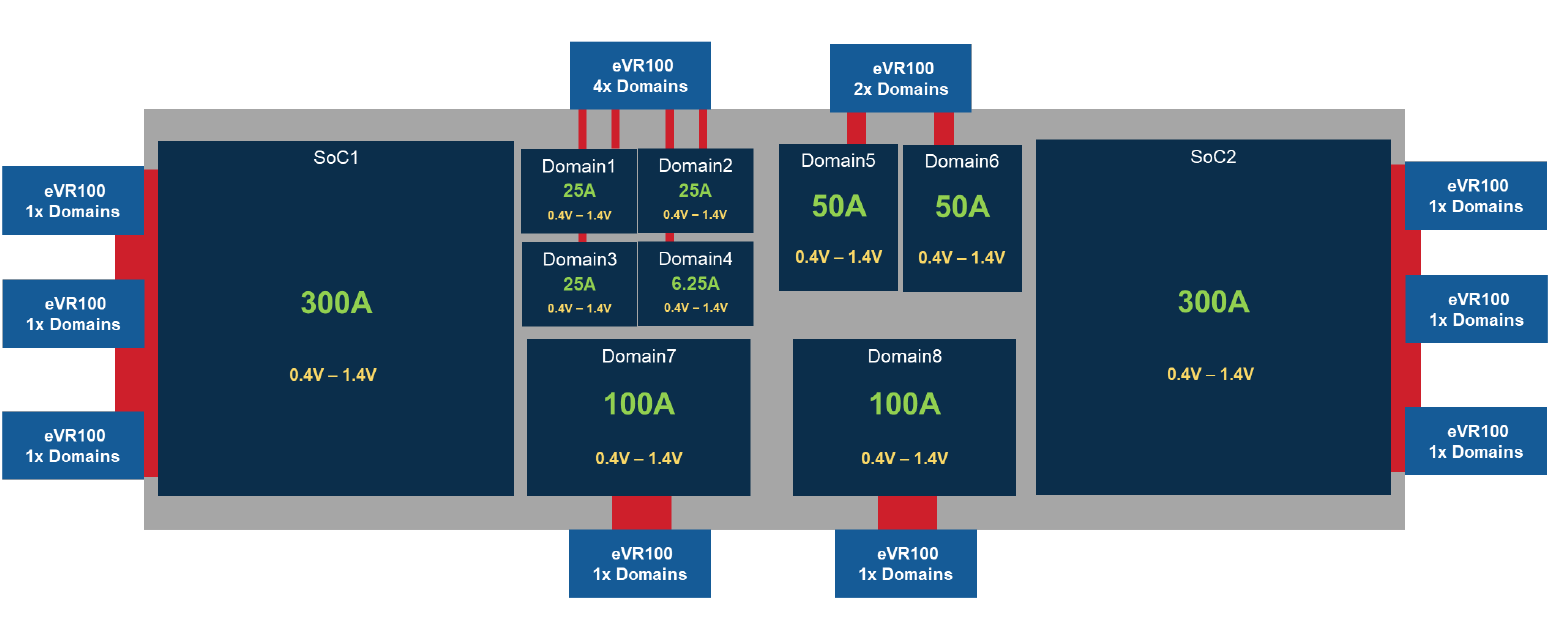

The eVR100 is capable of being configured in numerous ways to support large scale applications. Example shown is of 10 eVRs providing a total of 1000A for 2 large SoC’s and 8x smaller domains as may be required by the system.

Endura System Architecture: Medium Scale (up to 1000A)

eVR100 – 3000A+ Chiplet Solution

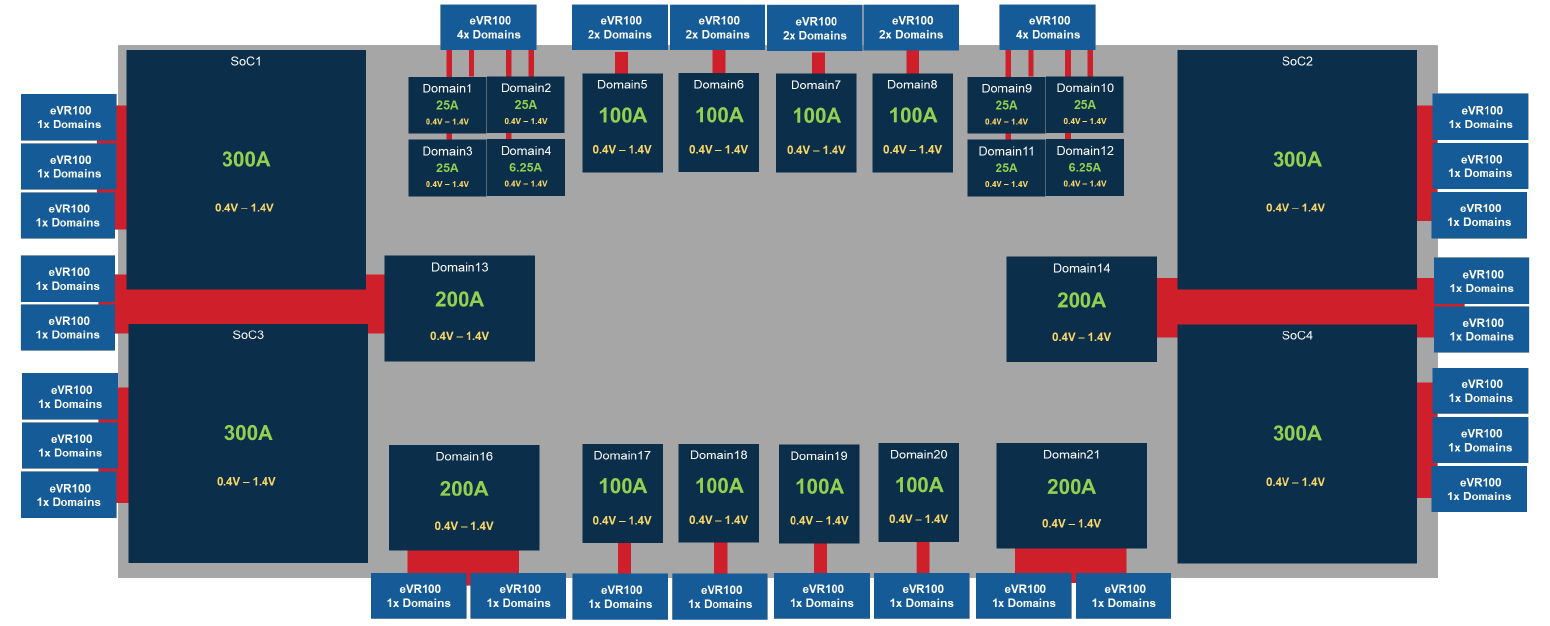

The scaled-up version of the 1000A solution utilizes the eVR100 30x to scale load requirements up to 3000A+. There are a total of 4x high current SoC’s and 21 independent domains with load requirements ranging from 6.25A to 200A. Devices in the system can be individually DVS controlled.

Endura System Architecture: Large Scale (up to 3000A)
